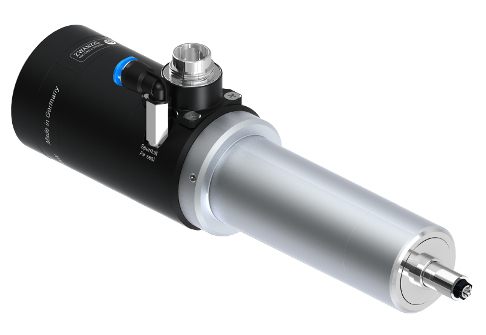

High frequency spindle for HSC (High-Speed-Cutting) processing.
Highspeed grinding, drilling, engraving and milling etc.
Documents to download
Spindle mass
Performance graph
Technical Data
| Collets shank diameter: | 3,0 mm / 3,175 mm |
| Collet type: | Z33P |
| Housing: | Stainless steel |
| Housing diameter: | 33 mm |
| Motor construction: | Three-phase-asynchronous motor |
| Speed range: | 5.000 – 50.000 rpm |
| Voltage V Maximum: | 36 |
| Current A Maximum: | 7 |
| Torque in Ncm: | 6 |
| Frequency range Hz: | 83 – 833 |
| Performance W Maximum: | 200 |
| Type and number of ball bearing: | Steel, permanently lubricated, 4 pcs hybrid |
| Run out inner taper mm: | < 0,001 |
| Clamp mechanism: | pneumatic direct change of tools |
| Cooling: | Not cooled |
| Weight: | 1.000 g |
| Further Features: | Sealing air connection |
| Order number: | 3345/6 |
Periphery:
Spindle holder
181033
