Features
- High performance in a compact design
- The HFU-3000 allows rotation frequencies up to 8.000Hz / 500.000Upm
- A digital signal processor (DSP) is detecting all the operating parameters in real time and controls it in dependence on the load through a vector control function
- Allows highest efficiency of the engines at low and high frequencies
- High reliability: All operating conditions such as acceleration, operation at rated speed, and deceleration are monitored and critical states are absorbed
- Controlled braking of the motor / spindle even with emergency stop – lock pulse after EN954_1 Kat 3
Integrated braking resistor - Individual adaptation to the respective application and attached spindle by freely programmable spindle curves. 16 spindle characteristics can be created and stored
- Diverse control and communication options
- Simple and flexible integration into existing systems through open configuration of I / O signals for control and configuration
- Galvanic isolation between all interfaces from each other and from the mains and motor potential
- Short-circuit proof
Different housing variants are possible
Technical Data
Connectivity: | 115 V/230, 50 Hz,1 PH |
Performance: | 3600 VA |
Output voltage: | 230 V |
Output current: | electronically limited |
Overload: | Duration adjustable max. 20s |
Output frequency: | max. 8.800 Hz / 500.000 Upm |
Spindle curves: |
max. 16, internally stored |
Control inputs: |
2 Analog: 0-10V, galvanically isolated |
Control inputs: |
6 Digital: 0-24V, galvanically isolated |
Control outputs: |
2 Analog: 0-10V, galvanically isolated |
Control outputs: |
6 Digital: over relais: 24VDC/250mA |
Interface: | RS232 /USB to adjustment module optional |
Housing: | Cabinet housing / 19″ Rack |

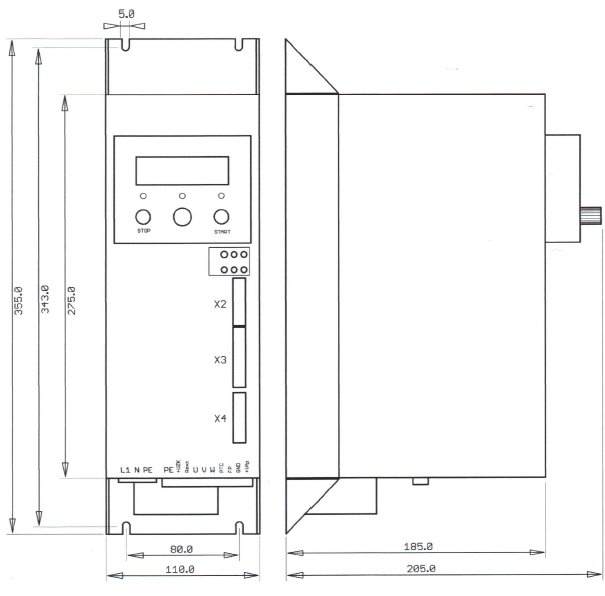

Housing dimensions B x H x T: |
120 x 355 x 185-205 |
Weight: | ca. 4 kg |
Protection: | IP20 |
Operating temperature: | 40°C |
Warranty: | 12 months |
Scope of delivery: | Converter cpl. mounted |
Order number: | 803000SSE |
