Spindles:

• 4545-4-HS

Features

• High performance in a compact design
• The HFU–400–DC allows rotation frequencies up to 1.666Hz / 100.000Upm
• A digital signal processor (DSP) is catching all the operating parameters in real time and controls it in dependence on the load through a vector control function
• Allows highest efficiency of the engines at low and high frequencies
• High operational safety: All operating conditions such as acceleration, operation at rated speed, and deceleration are monitored and critical states are absorbed
• Controlled braking of the motor / spindle even with emergency stop
• Integrated braking resistor
• Transparency: The user is always informed about the current status of the converter and the spindle via LEDs on the front panel. Speed ​​with 3-digit LED display with load and LED bar
• Control: The converter can be controlled manually by two front keys as needed
• Individual adaptation to the respective application and attached spindle by freely programmable spindle curves. 16 Spindle characteristics can be created and stored
• Diverse control and communication options
• Simple and flexible integration into existing systems through open configuration of I / O signals for control and configuration
• Galvanic isolation between all interfaces among each other and from the mains and motor potential
• Short-circuit proof
• Different housing variants are possible

  Technical Data

  Connectivity:	115 V/230, 50 Hz,1 PH
  Performance:	400 VA
  Output voltage:	60 V
  Output current:	electronially limited
  Overload:	Duration adjustable max. 10s
  Output frequency	1.666 Hz / 100.000 Upm
  Spindle curves:	max. 16, stored internally
  Control inputs:	1 Analog: 0-10V, galvanically isolated
  Control inputs:	1 Digital: 0-24V, galvanically isolated
  Control outputs:	1 Analog: 0-10V, galvanically isolated
  Control outputs:	5 Digital: via relais: 24VDC/250mA
  Interface:	RS232, 9600Bd
  Housing:	Cabinet- or desktop housing
  Weight:	ca. 6 kg
  Degree of protection:	IP20
  Operating temperatur:	40°C
  Order number:	45400(SSE)

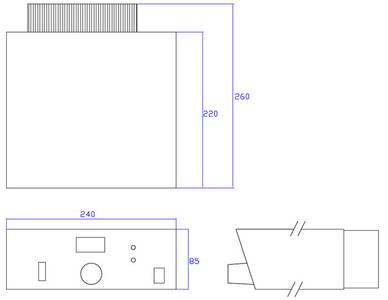

  Technical Drawing desktop housing

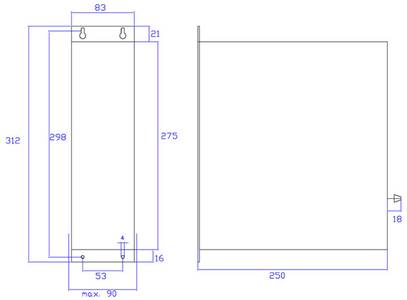

  Technical Drawing Cabinet Housing
