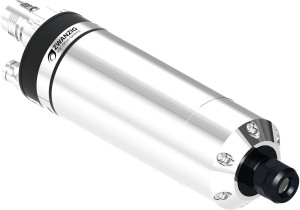

High frequency spindle for HSC (High-Speed-Cutting) processing.
Highspeed grinding, drilling, engraving and milling etc.
Documents to download:
Spindle mass
Performance graph
Technical Data
| Collets shank diameter: | max. 6,0 mm |
| Collet type: | D10 |
| Housing: | Stainless steel |
| Housing diameter: | 45 mm |
| Motor construction: | Synchronous motor |
| Speed range: | 5.000 – max. 100.000 rpm |
| Voltage V Maximum: | 50 |
| Current A Maximum: | 7 |
| Torque in Ncm: | 5 |
| Frequency range Hz: | 83 – 1667 |
| Performance W Maximum: | 500 |
| Type and number of ball bearing: | Hybrid ceramic, permanently lubricated, 4 pcs |
| Run out inner taper mm: | < 0,001 |
| Tool change: | manual by clamping nut |
| Cooling: | Liquid cooling integrated |
| Weight: | 1200 g |
| Further Features: | – Sealing air – Motor temperature monitoring via PTC |
| Order number: | 4545/4-HS |
Periphery:
HF Converter
HFU-400-DC
Spindle holder
181045
