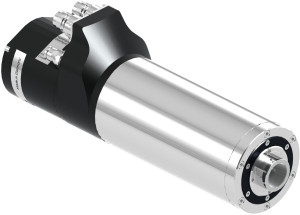

High frequency spindle for the HSC (High Speed Cutting) – editing..
High-speed grinding, – drill, graving and milling etc..
Documents to download:
Spindle mass
Performance graph
Technical Data
| Collets shank diameter: | Typ ER16 – max. 10,0 mm ISO20 collet holder |
| Collet type: | ER16 |
| Housing: | Stainless steel |
| Housing diameter: | 80 mm |
| Motor construction: | Three-phase-asynchronous moto |
| Speed range: | 5.000 – 40.000 rpm |
| Voltage V Maximum: | 170 |
| Current A Maximum: | 12 |
| Torque in Ncm: | 58 |
| Frequency range Hz: | 667 |
| Performance kw Maximum: |
S1: 2,5 |
| Type and number of ball bearing: | Hybrid steel / ceramic, permanently lubricated, 4 pcs |
| Run out inner taper mm: | < 0,001 |
| Tool change: | Pneumatic change of cone ISO20 |
| Cooling: | Liquid cooled |
| Weight: | 7000 g |
| Further Features: | – Taper cleaning – Sealing air – Inductive taper monitoring – tool clamped – PTC motor temperature monitoring |
| Order number: | 8045-4 |
Periphery:
HF Converter
HFU-3000
HFU-3200
Spindle holder
181080
Spindle cooler
K4305
